Curtis Controller, Series, 1204M

Part Numbers: 101474901, 101840203, 74883-87 CO, 831722 CU, 20972G1 EZ, Yam G9, G14, G16, CON-CT001 RH, 994, 998

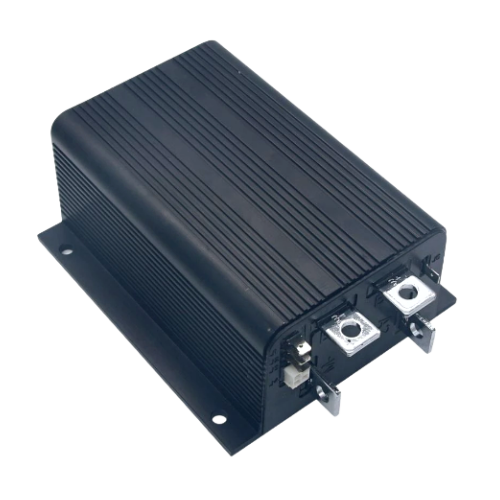

Curtis Controller, Series, 1204M-5305, 48V/36V, 325A
Suits Yamaha G9 / G14 / G16, Club Car DS (Years 1996-Up), EZGO Marathon

Key Features:

  • CURTIS Model: 1204M-5305
  • Norminal Battery Voltage (Volts): 48V (default setting) or 36V
  • 2 Minute Current Rating (amps): 325
  • 5 Second Boost Current Rating (amps): 358
  • 1 Hour Current Rating (amps): 140
  • Plug Braking (A2 Busbar): Yes
  • PWM operating frequency: 15.6 kHz
  • Electrical isolation to heatsink (min.): 500 VAC
  • KSI input current (no contactors engaged):
    • 70 mA without programmer
    • 130 mA with programmer
  • Logic input current: < 2 mA
  • Status LED output current (max.): < 2 mA
  • Ten throttle types can be used with these controllers:
    • Type 0: 2-wire potentiometer, 0–5kΩ
    • Type 1: 2-wire potentiometer, 5kΩ–0
    • Type 2: single-ended 0–5V input
    • Type 3: 2-wire potentiometer, 4.6kΩ–0
    • Type 4: 2-wire potentiometer, 5.5kΩ–0
    • Type 5: 2-wire potentiometer, 1kΩ–0
    • Type 6: ITS input
    • Type 7: single-ended 6.3–10.6 V input
    • Type 8: single-ended 6–12 V input
    • Type 9: single-ended 3-wire potentiometer, 0–5kΩ
  • Operating ambient temperature range: -40°C to 50°C
  • Package environmental rating: ISTA 2A; electronics sealed to IP65
  • Regulatory compliance: EN 12895 and EN 61000

Features Include:

  • High-frequency switching and ultra-low voltage drops provide high efficiency and silent operation
  • Simple mounting and wiring with push-on connectors for control signals and plated solid copper buses for power connections
  • Compatible with either a two-wire potentiometer or a voltage throttle
  • Throttle fault protection circuitry disables controller if throttle wires become open
  • High pedal disable feature prevents controller operation if key is turned on while throttle is applied
  • Plug braking diode internal to controller
  • Thermal protection and compensation circuit provides constant current limit over operating range and during under/over temperature cutback; no sudden loss of power under any thermal conditions
  • Undervoltage cutback function protects against low battery voltage, including low voltage caused by external loads
  • Easily programmable through the CURTIS Programmer 1313-4401 Model
  • Rugged anodized aluminum extruded housing meets IP65 environmental sealing standards for use in harsh environments

If unsure of compatibility, please ask to confirm

*PLEASE NOTE; Due to the nature of the item, if controller is not installed by professional, warranty is VOID
